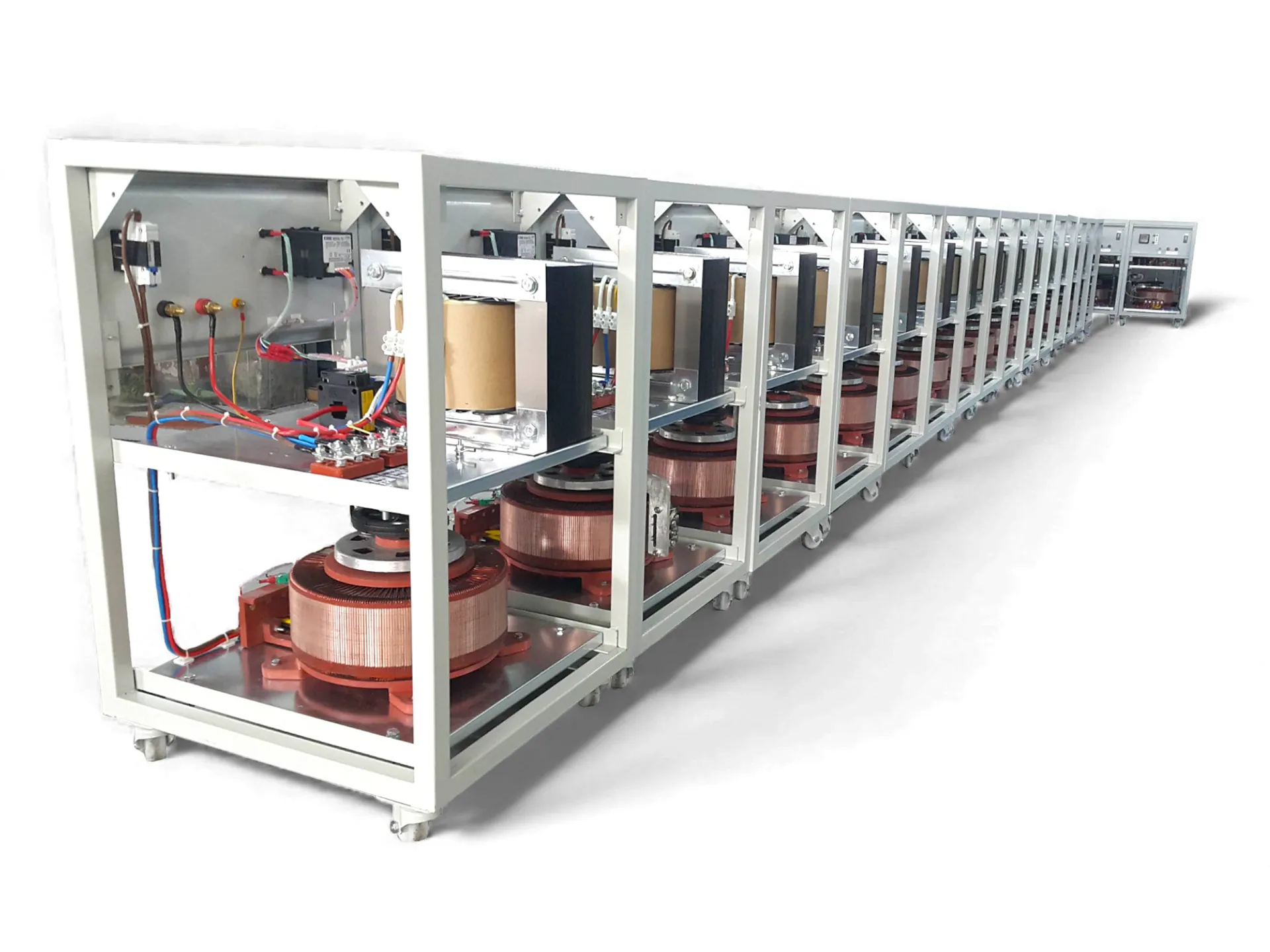

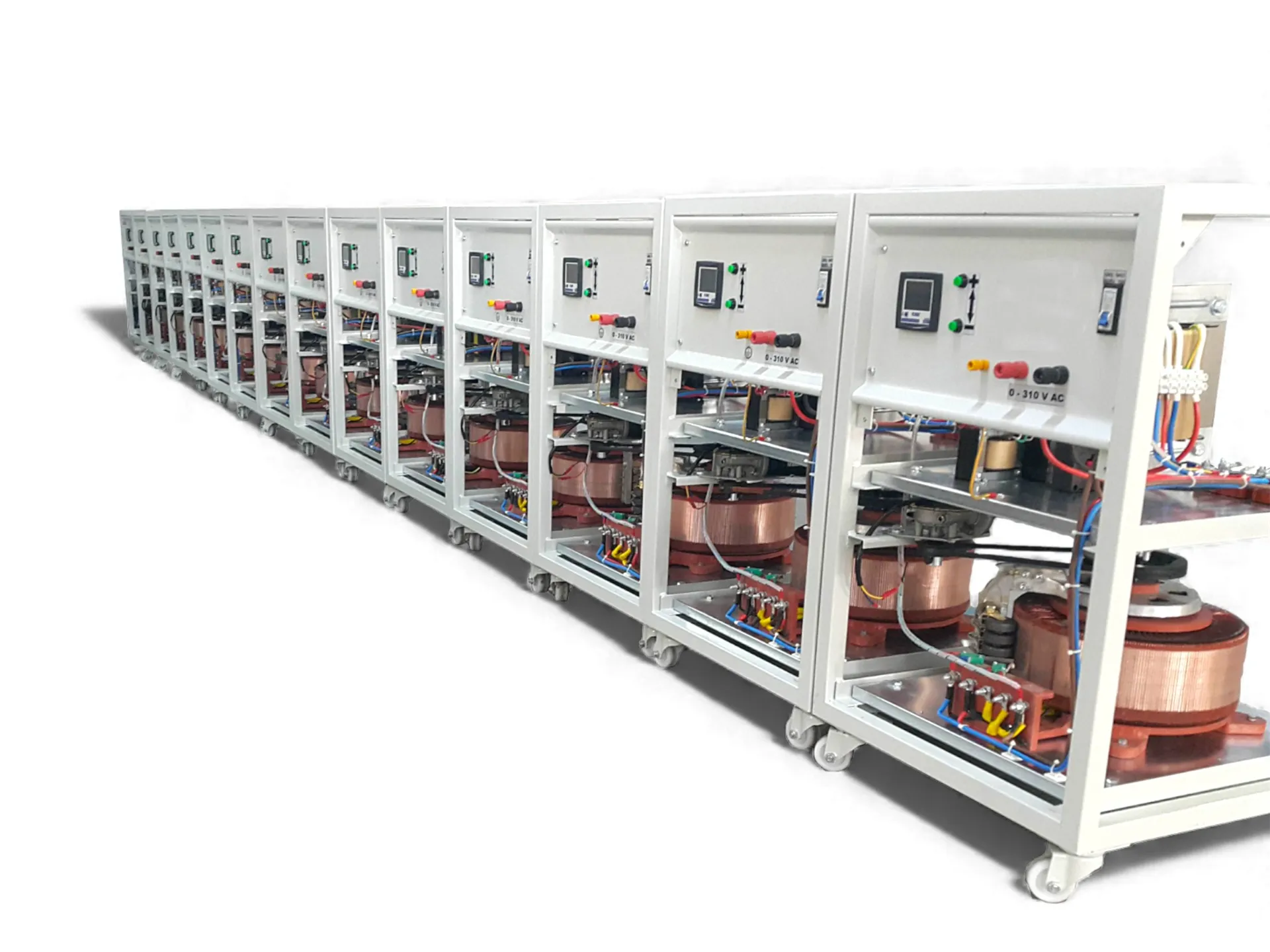

100- KVA MONO PHASE TEST VARIAC

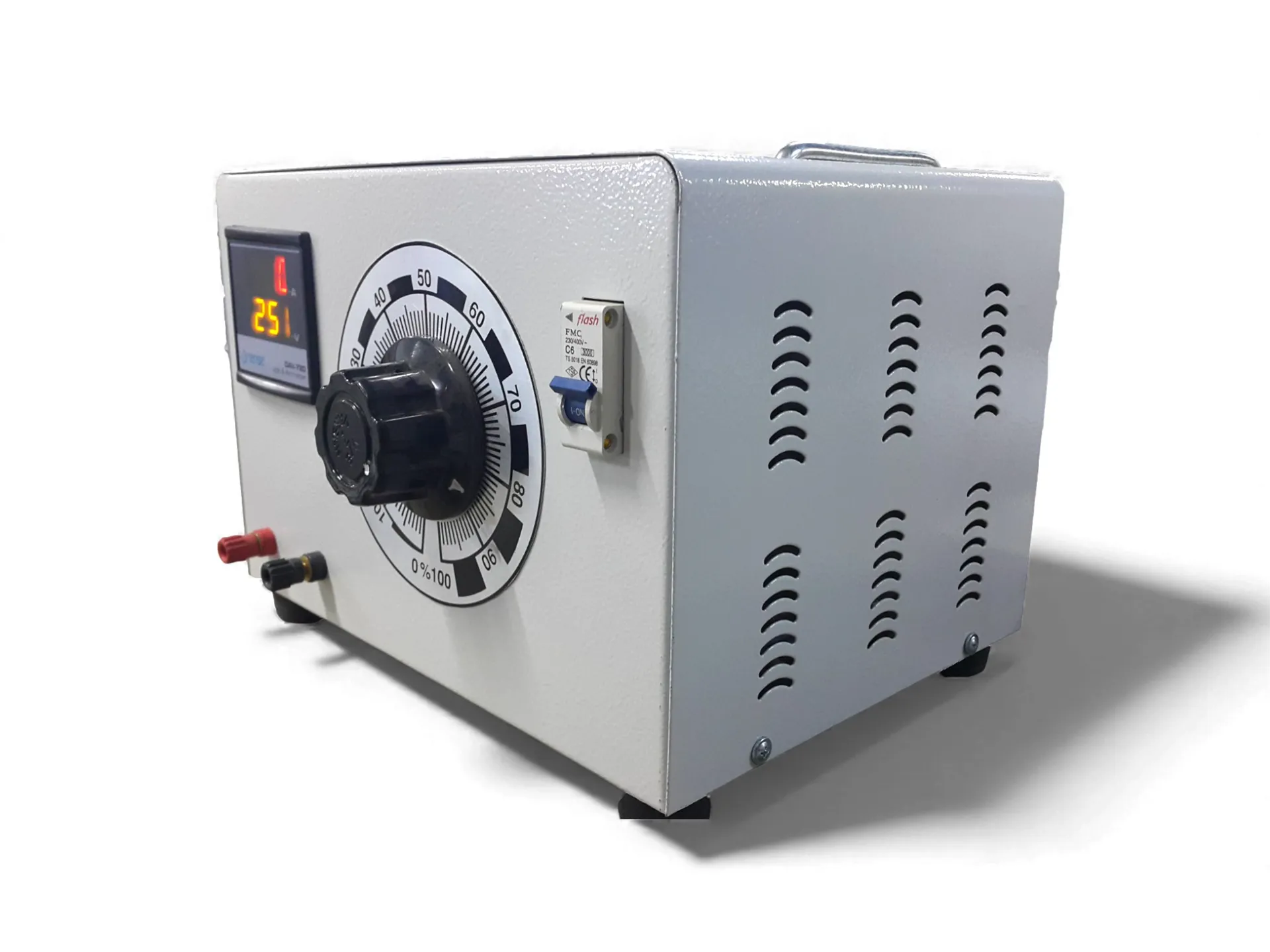

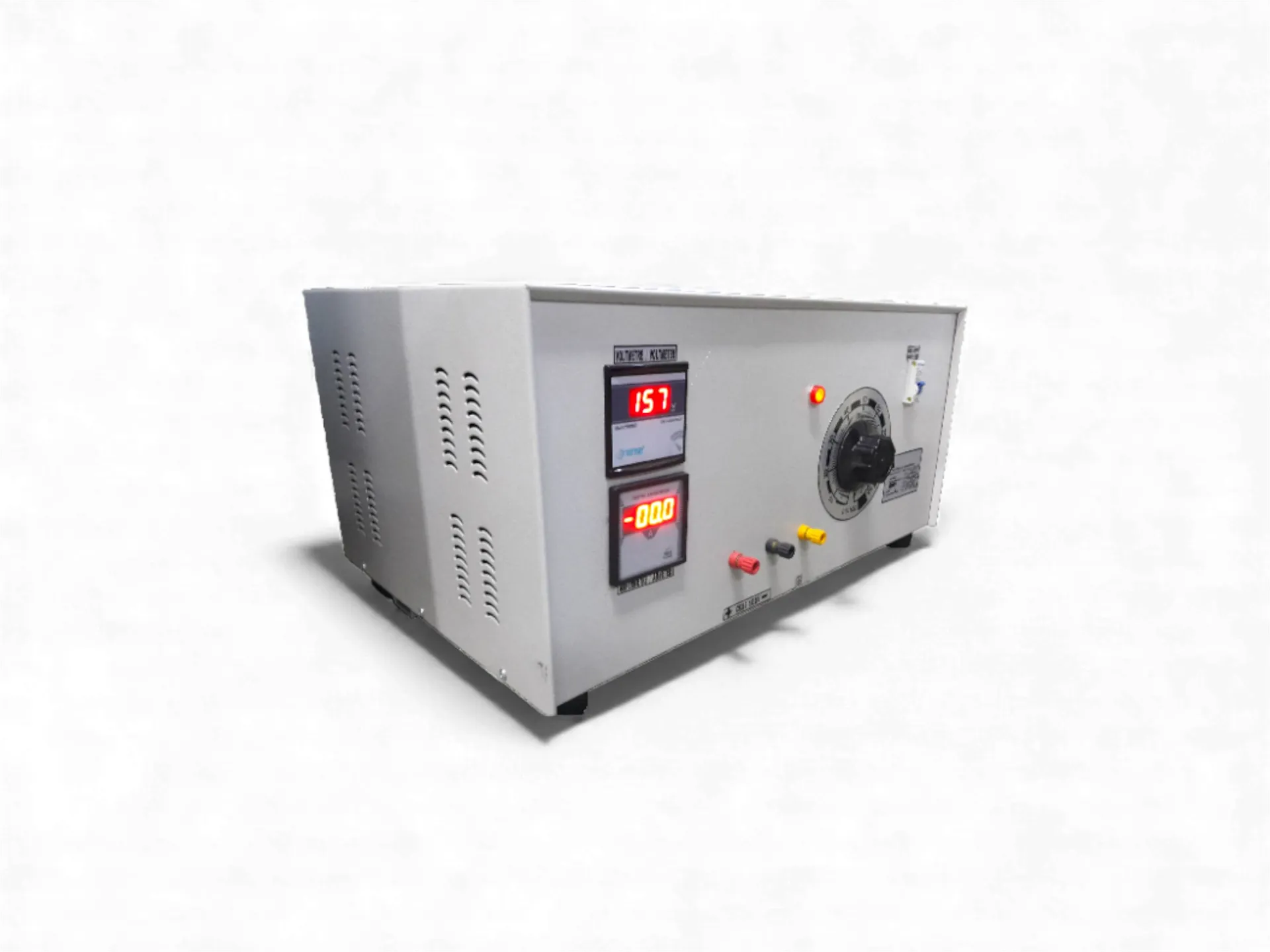

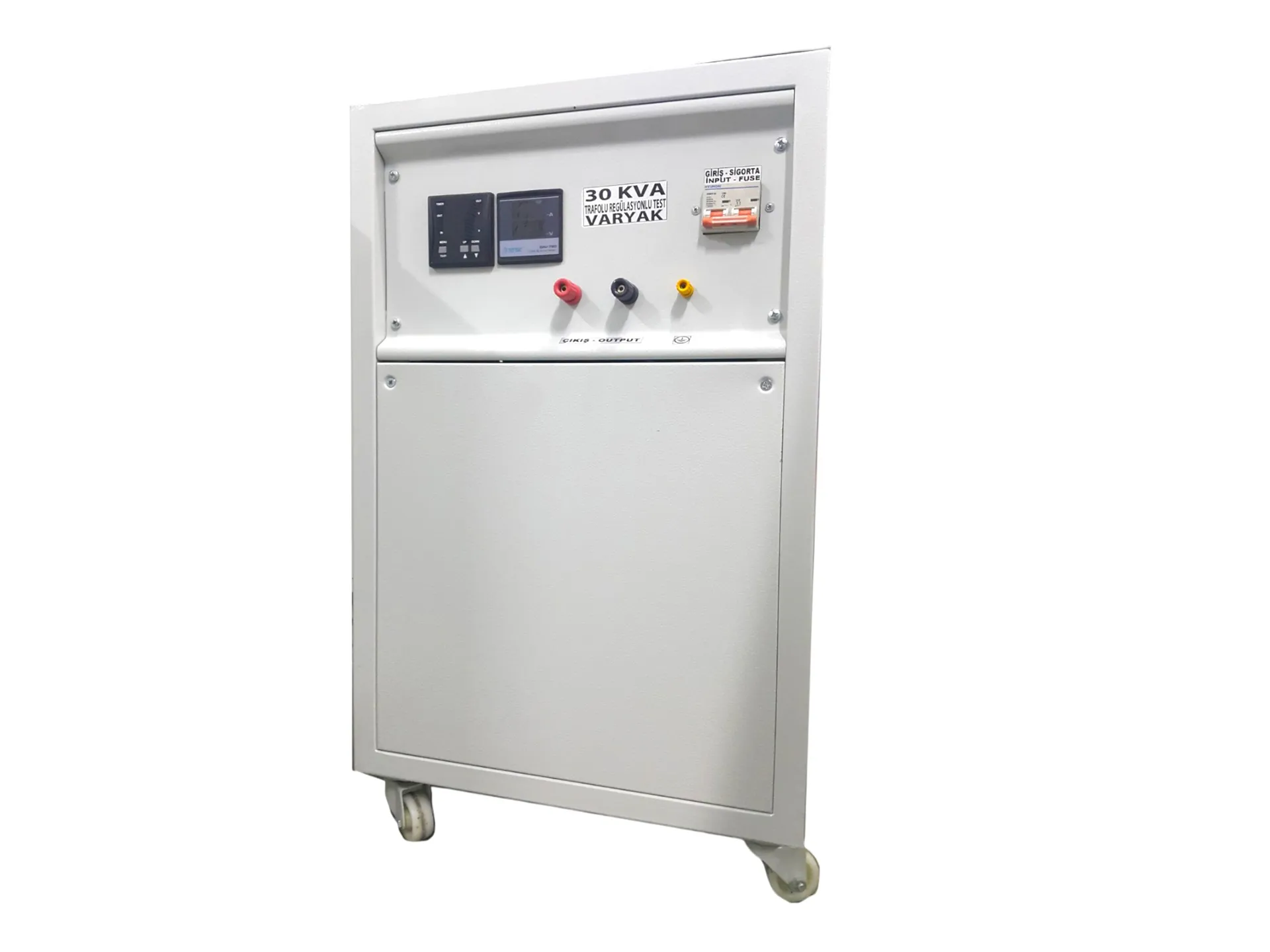

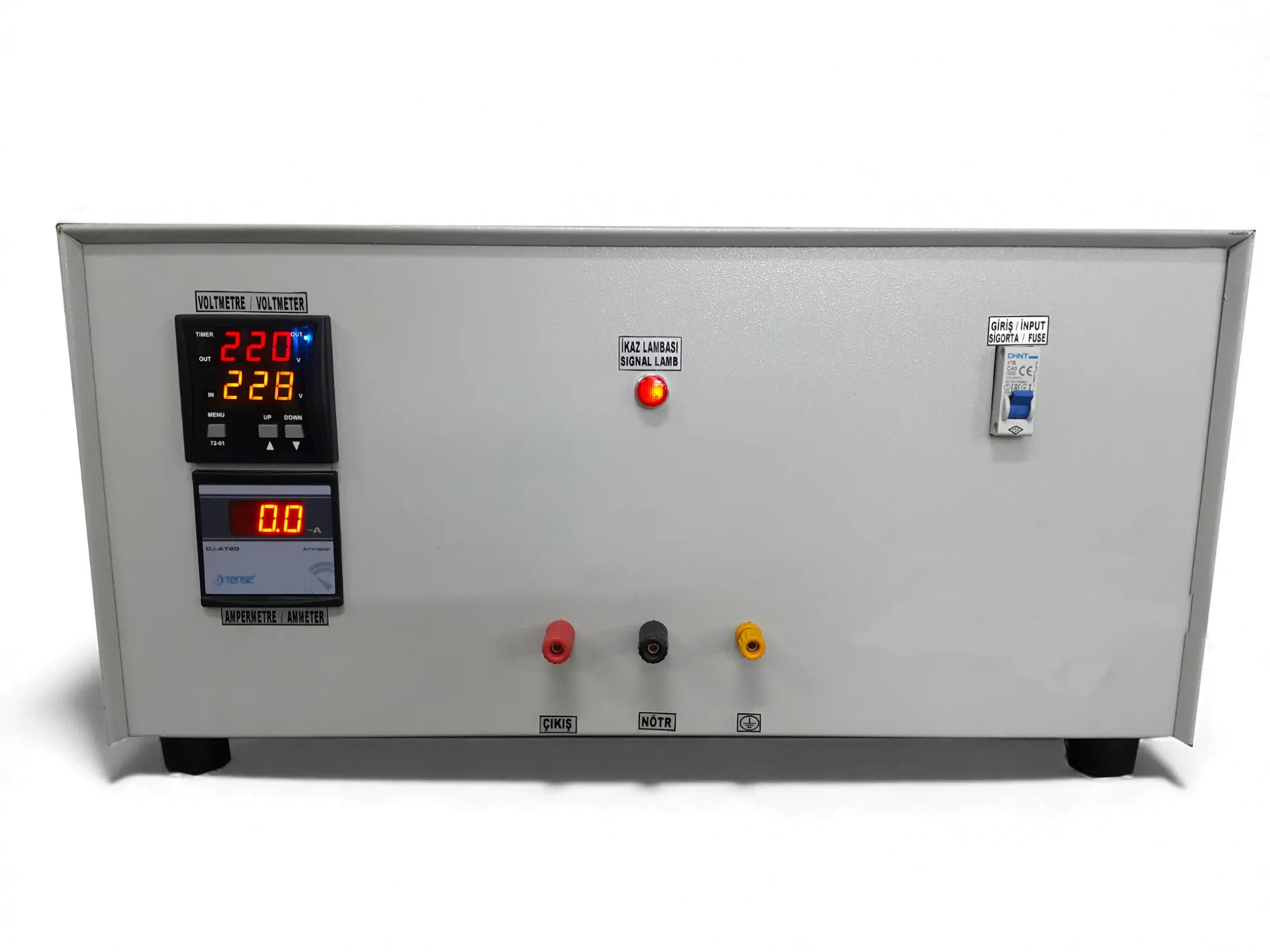

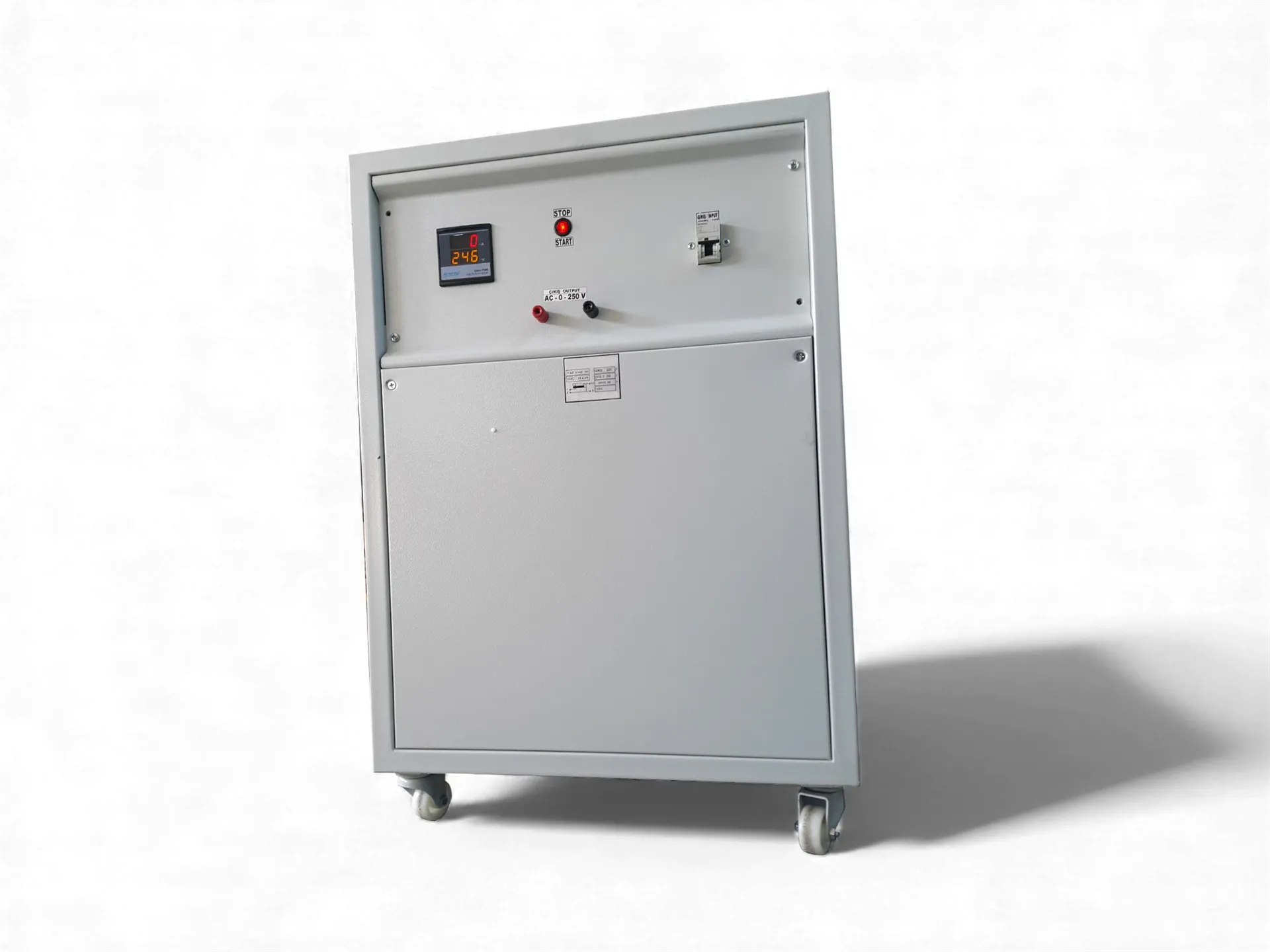

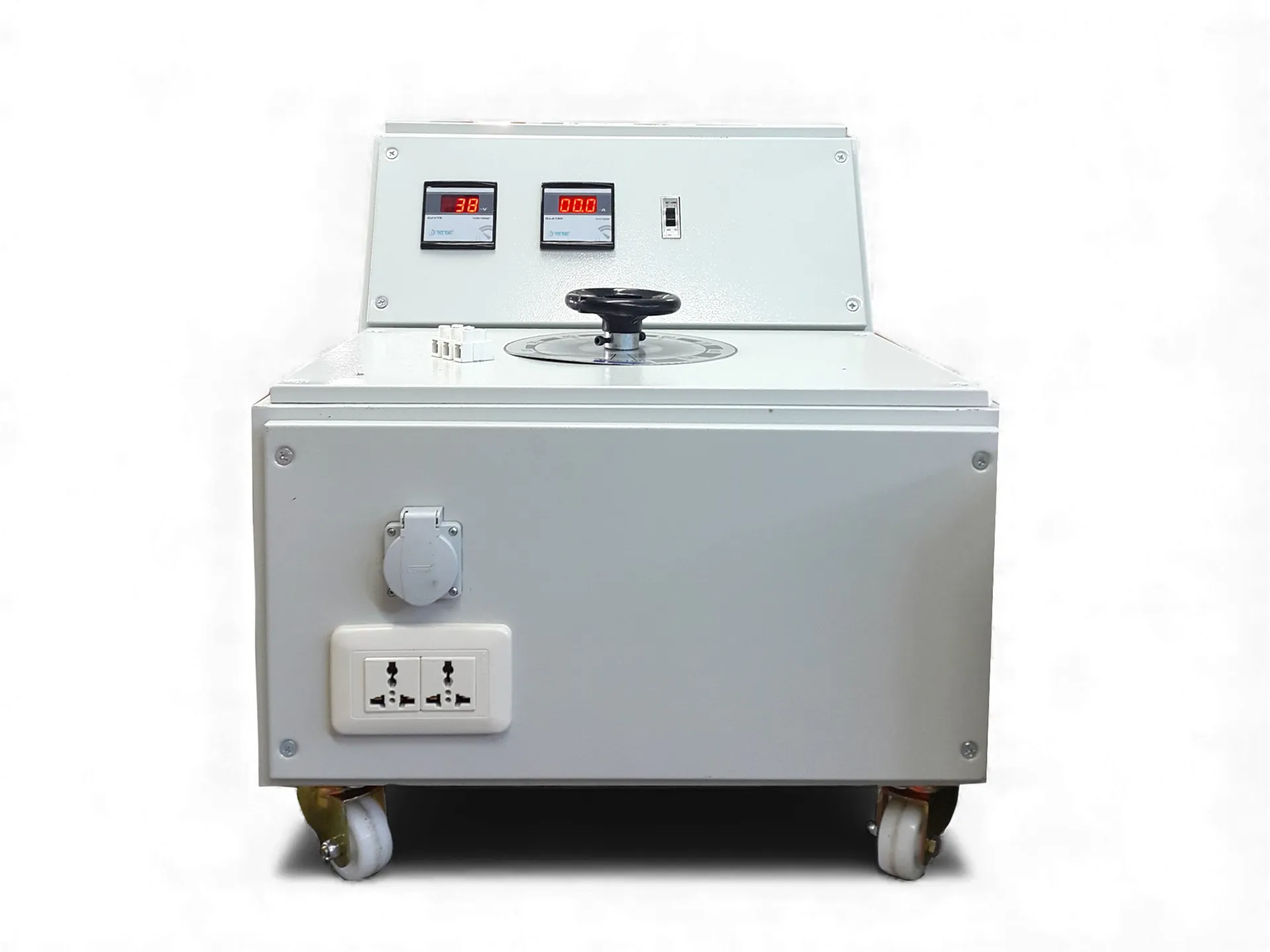

BOXED VARIAC

It allows the desired voltage to be adjusted manually or automatically via a servo motor, within an adjustment range determined according to customer requirements. The variac inside is formed by winding single–coil enamelled copper wire around a toroidal steel core. The variac carries the entire load that provides power and voltage adjustment. With the help of our PEA-72-01 board mounted on the boxed variac, the input voltage, output voltage, and drawn current can be monitored instantly. In addition, the PEA-72-01 board automatically records the highest and lowest values seen instantly and can be reset upon request.

• Digital input–output voltmeter
• Digital ammeter
• Ability to record the highest and lowest values displayed
• Data reset function
• Input–output voltage and current calibration
• 0–300 Volt wide voltage range (single-phase)
• Terminal block or socket output
• Easy operation with plug-in cable at the input
• V-automatic protection
• High efficiency, quiet operation
• Manual or automatic adjustment
• High-quality ergonomic structure, easy-to-carry accessories
• ISO 9001:2008
